Mr. Aircon

Factory Fabric Duct System

Metro Manila

Large-scale fabric duct air distribution for an industrial manufacturing facility with high-bay ceiling.

Energy Savings
38%reduction

vs. non-inverter baseline

Coverage Area
800sqm

Total conditioned floor area

Fabric Duct + AHUFlowSox
Operating Hours
Start: 6:00 AM
End: 4:00 PM
12 PM24681016hr
Start: 6:00 AM
End: 10:00 PM
Units Installed
8units

Completed in 21 days

Cooling Capacity
Max Output: 360K BTU/hr
System Type: Fabric Duct + AHU
360kBTU
Max Cooling Output
Monthly Energy Cost
Estimated
PHP72,000
Actual cost
Saved
Temperature
Range: 18–22 °C
Setpoint: 19 °C
Peak hour

24-hour temperature profile

Efficiency
11.5EER

Energy Efficiency Ratio

18°C target

Project Highlights

High-bay fabric duct installation
Even air distribution across 800 sqm
Washable antimicrobial fabric
Lightweight — no structural load

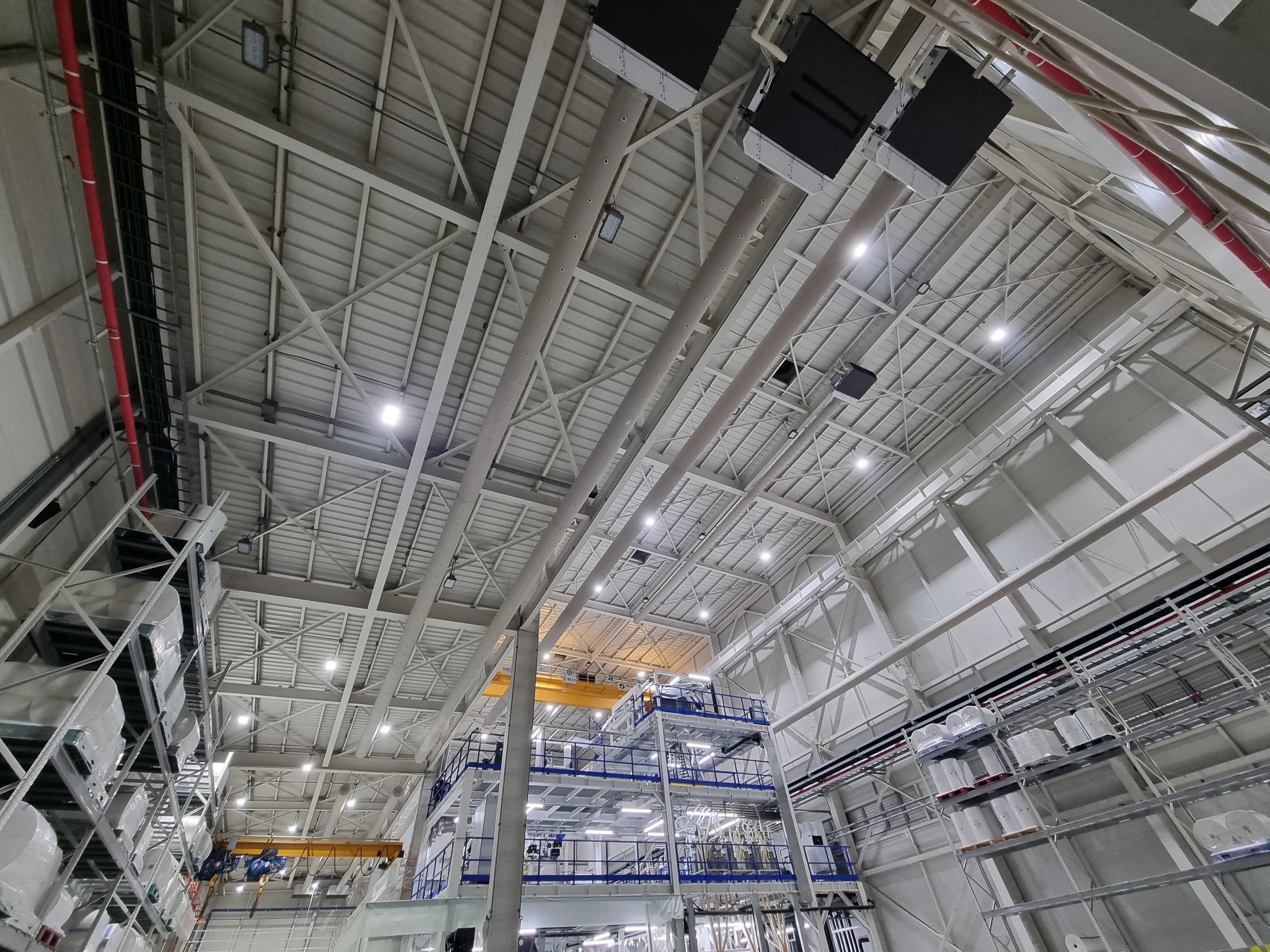

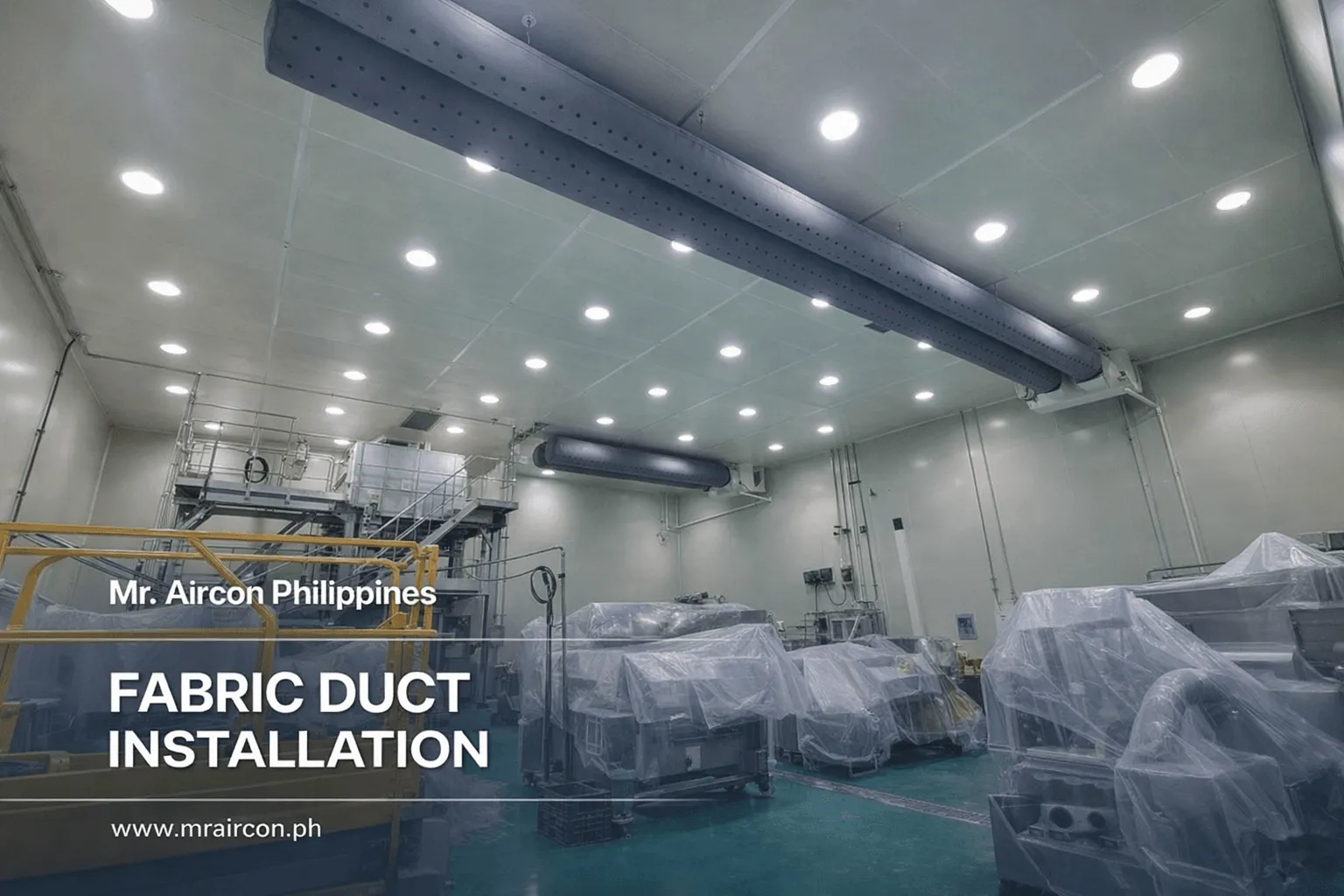

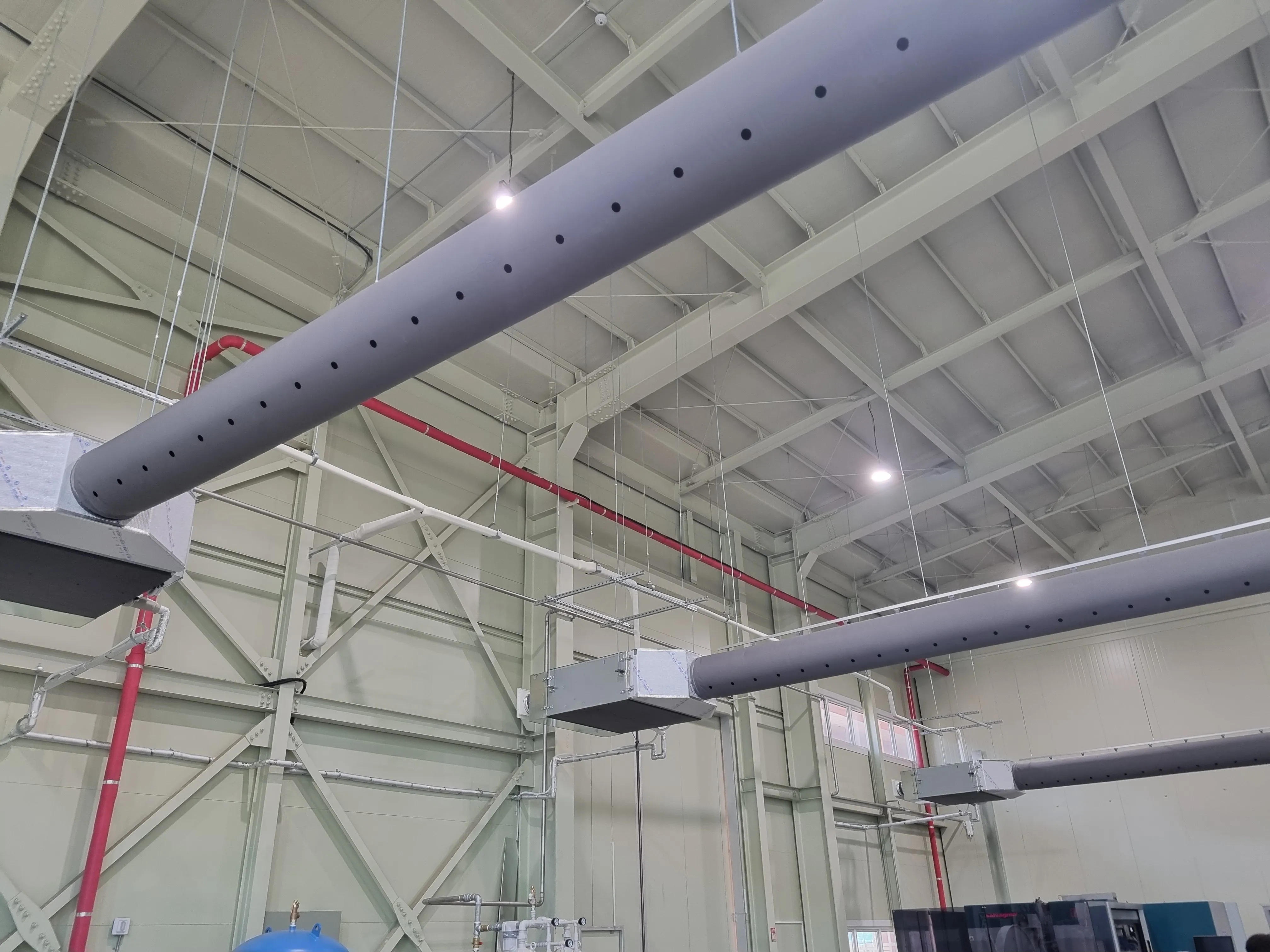

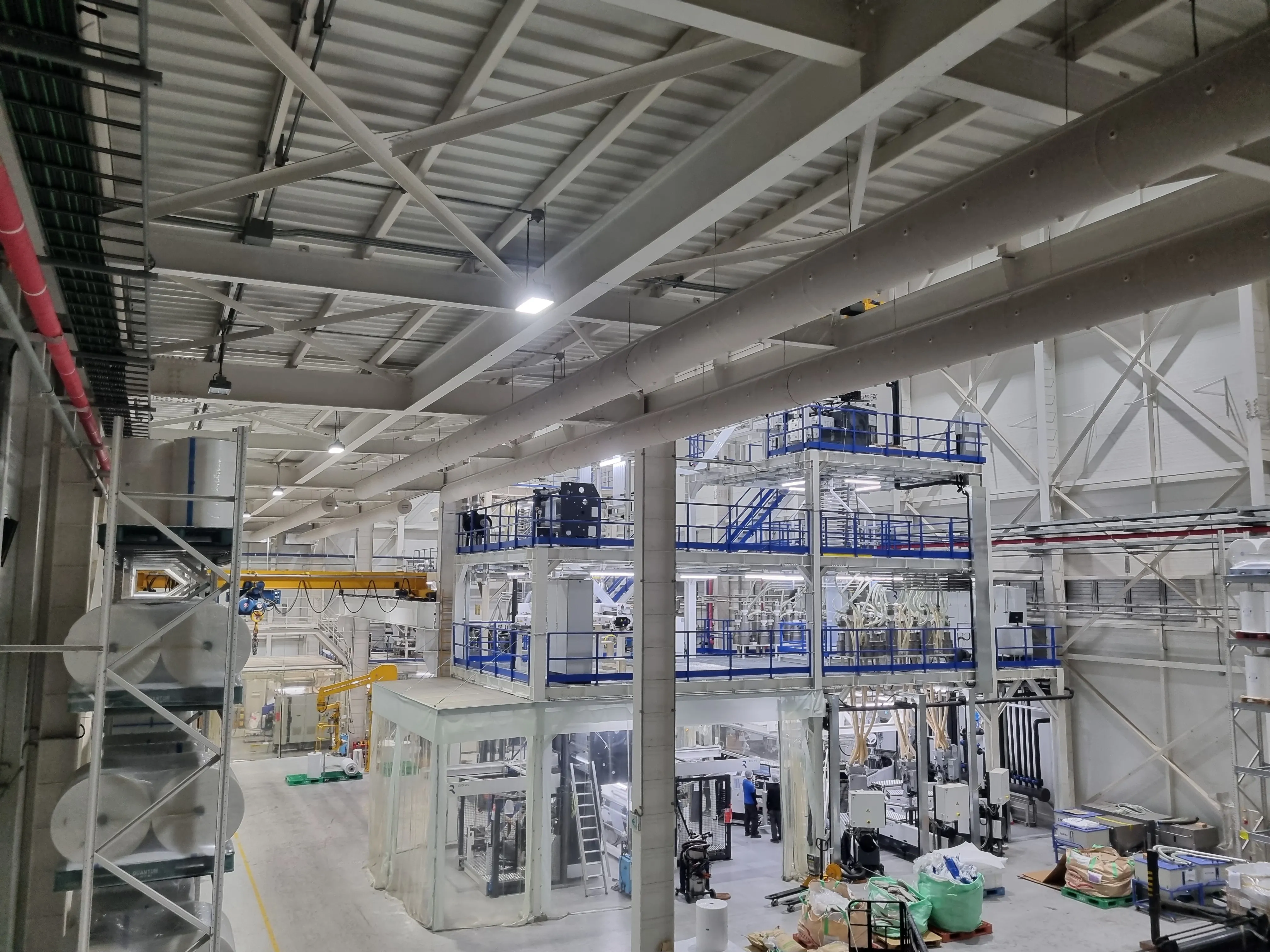

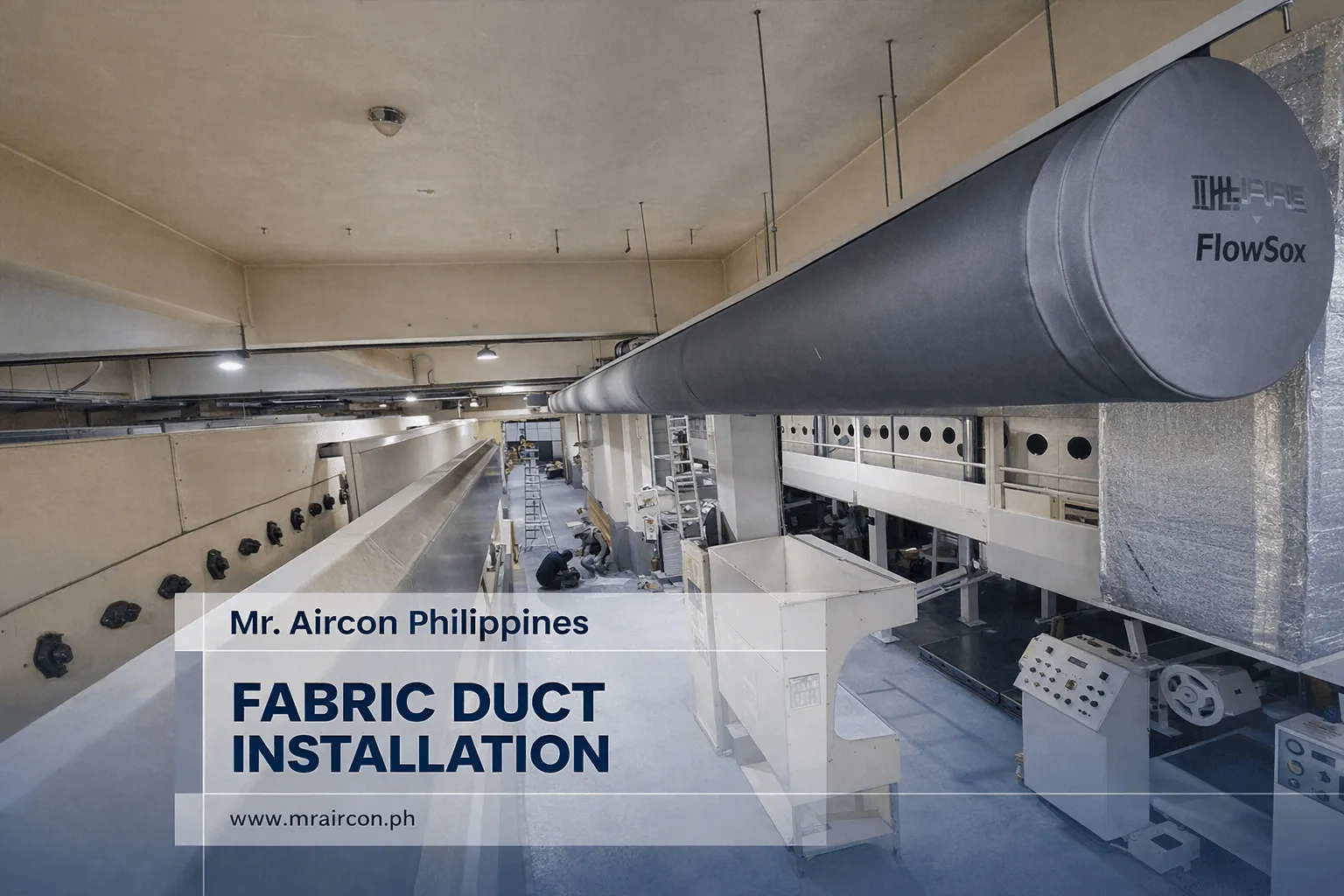

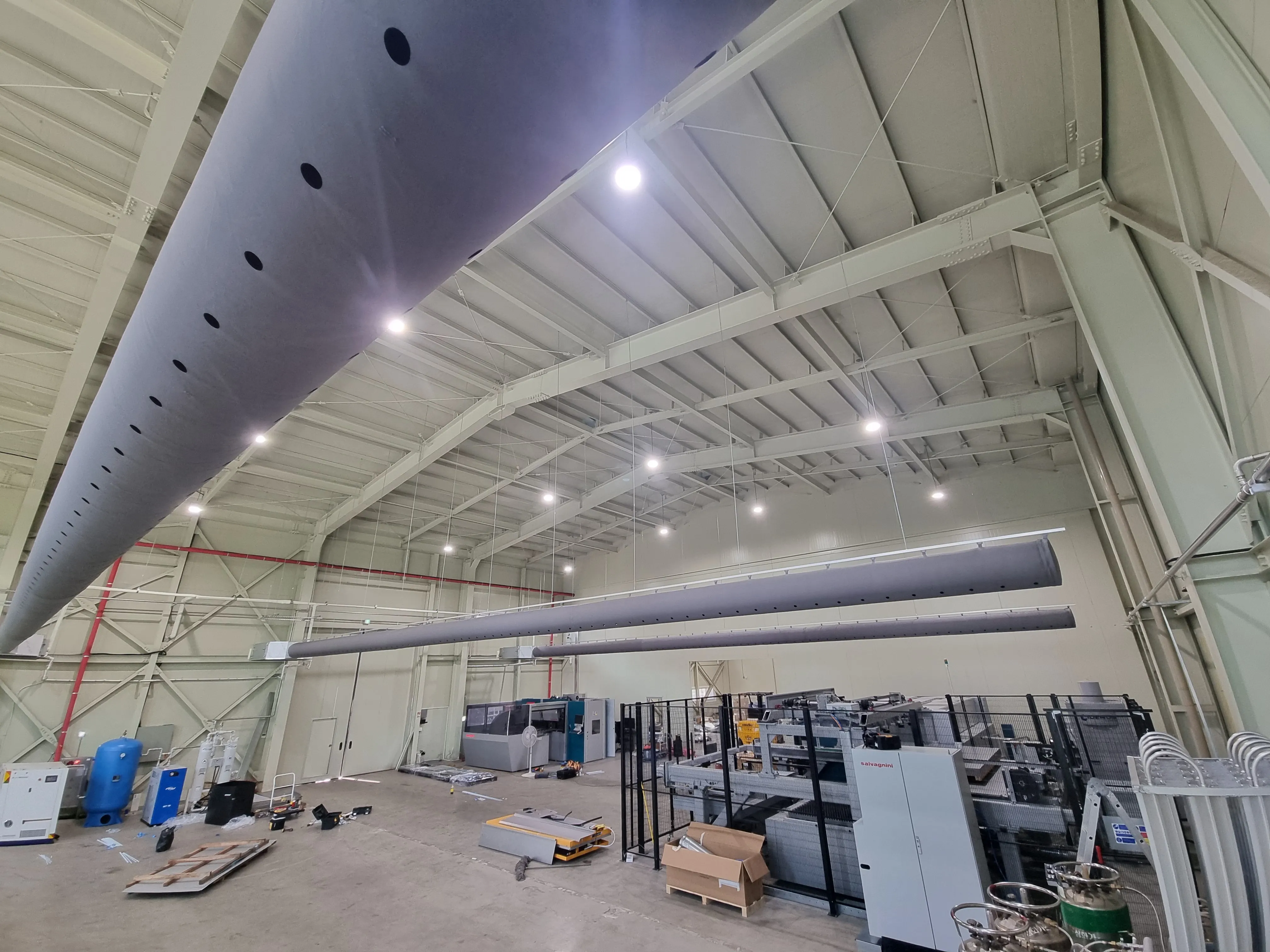

Project Gallery
