Site Survey & Plan Analysis

Before we quote, we check the space: room sizes, heat load, power supply, and where the indoor units, outdoor units, piping and drains can go. Start with a floor plan or photos; we visit the site when the job needs it.

Send your plan Contact us

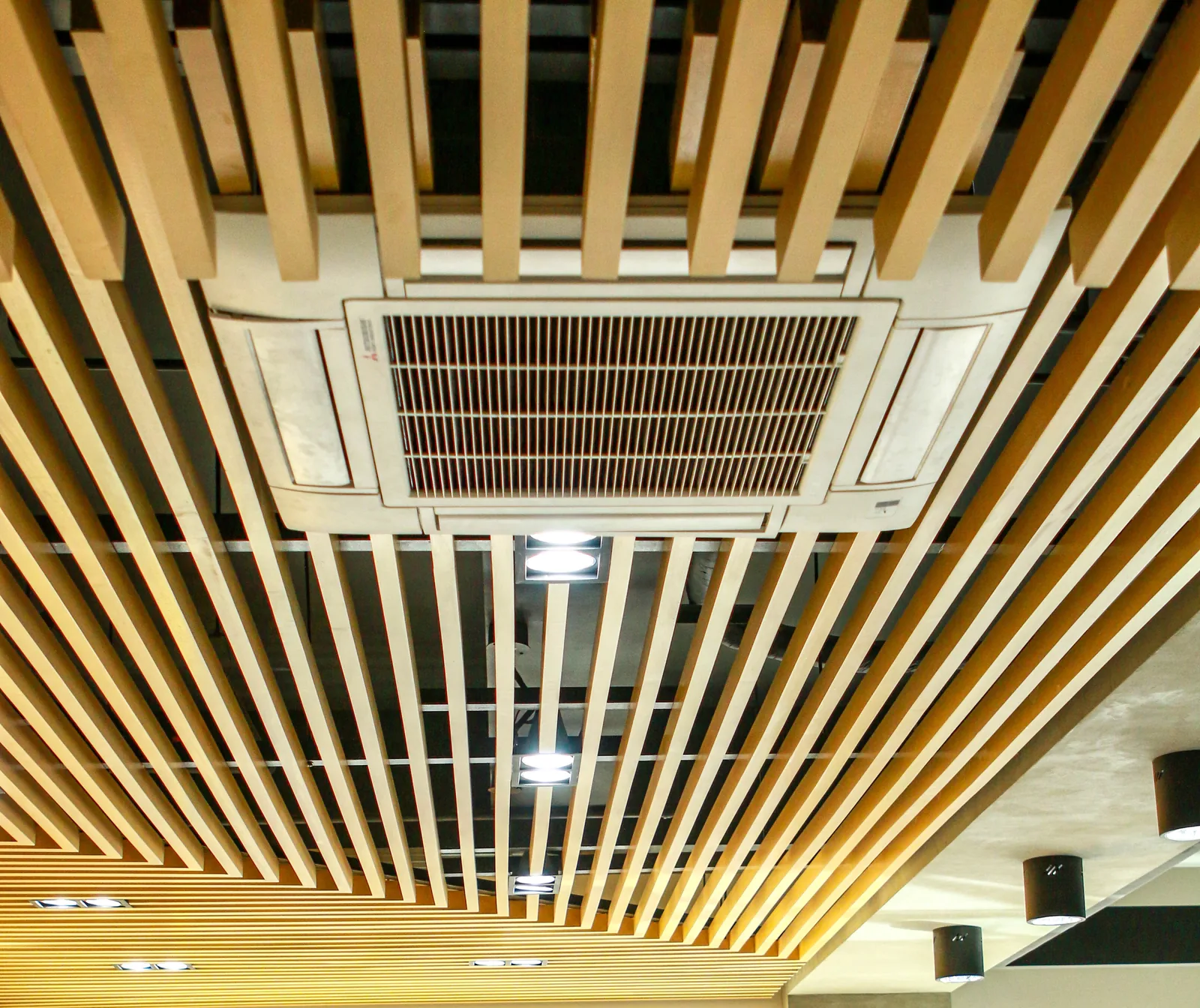

Ceiling cassette aircon set into a wood slat ceiling, with downlights between the slats

Plans we have marked up

Real jobs, client details removed. Click a plan to open it full size.

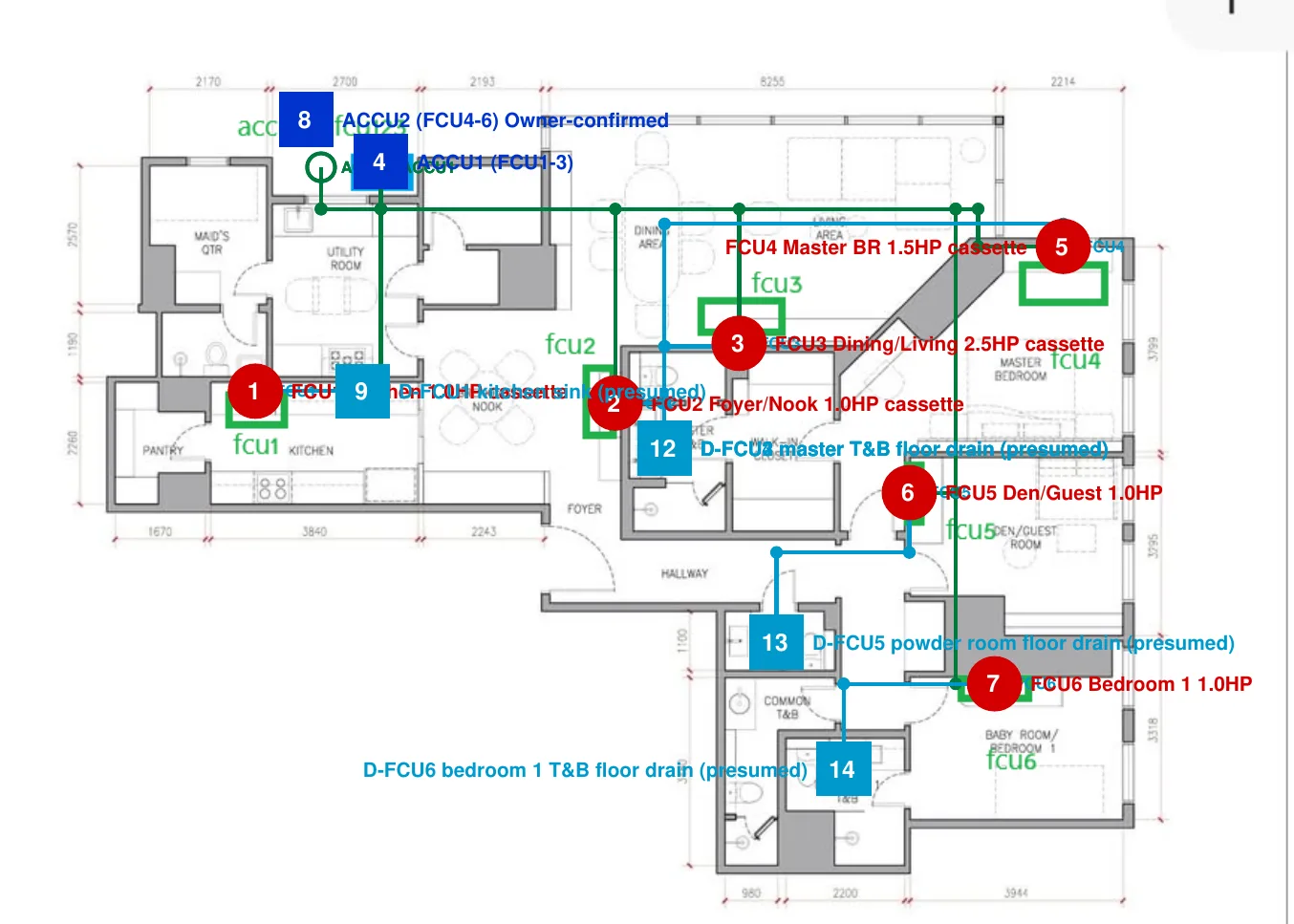

Multi-split aircon floor plan with numbered red indoor unit tags, two outdoor units ACCU1 and ACCU2, green refrigerant pipe routes and blue condensate drain routes — Residence, multi-split. Two outdoor units (ACCU1, ACCU2) feeding numbered indoor units, with capacity and unit type per room. Green lines are refrigerant piping, blue lines are drain routes to floor drains.

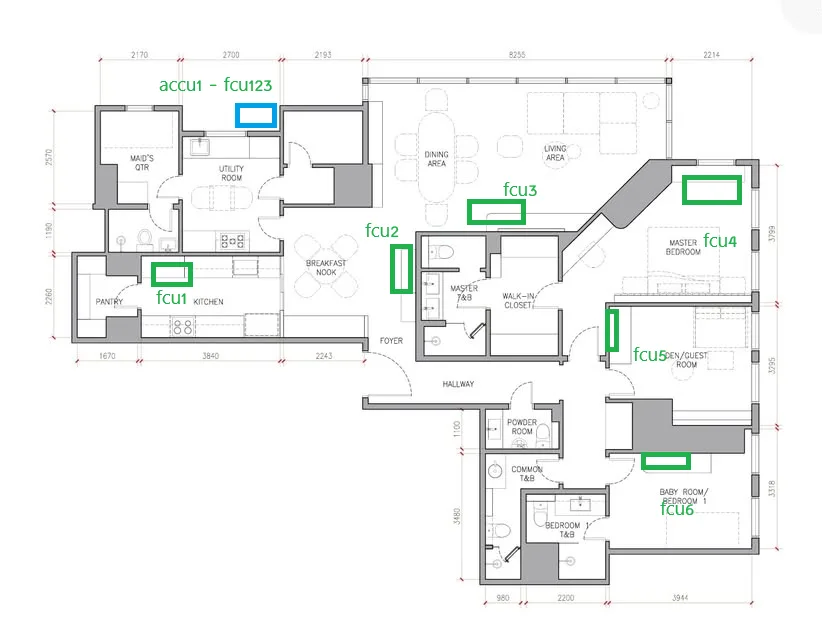

Residential floor plan marked with green boxes for six aircon indoor units (FCU1 to FCU6) and a blue box for the outdoor unit beside the utility room — Same residence, first pass. Indoor unit positions FCU1–FCU6 boxed in green; outdoor unit position in blue beside the utility room.

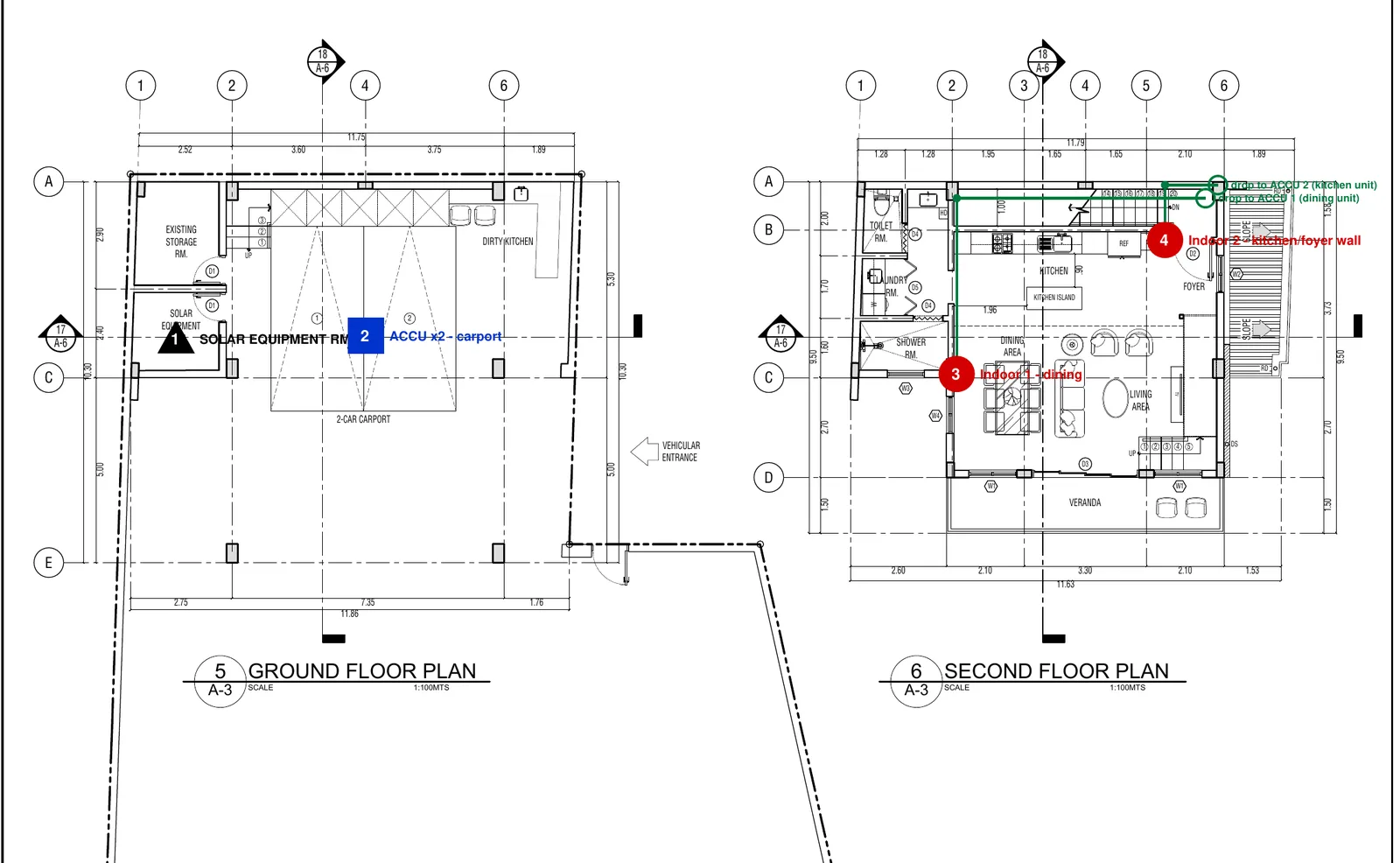

Ground floor and second floor house plans with aircon marks: outdoor units at the carport, indoor units in the dining area and kitchen foyer wall, and green pipe routes — Two-storey house. Outdoor units at the carport, indoor units on the dining and kitchen/foyer walls, and the pipe drop from each indoor unit.

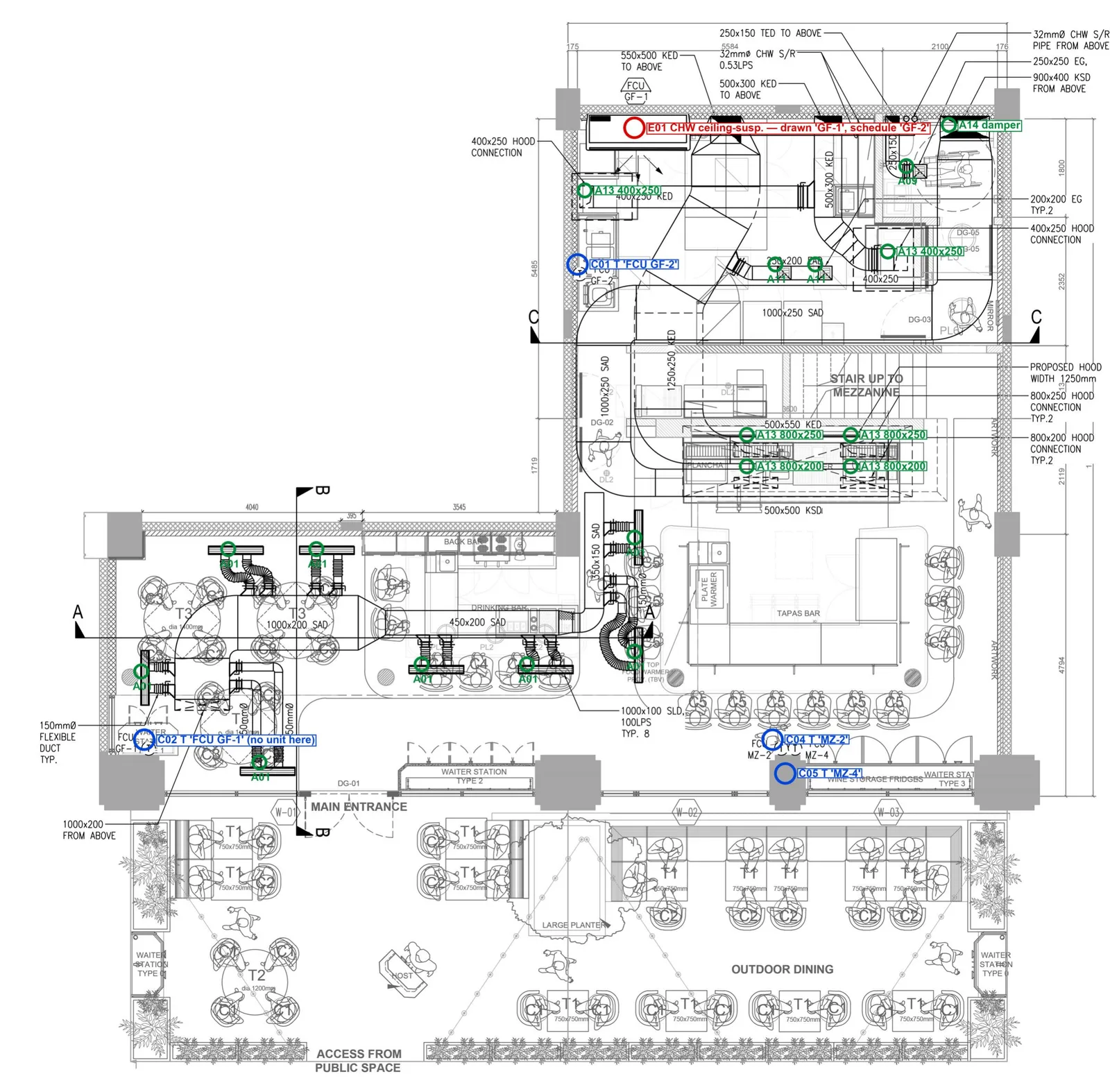

Restaurant ground floor HVAC plan with ductwork, marked with red equipment tags, blue thermostat tags and green duct accessory tags — Restaurant, ground floor. HVAC drawing checked and tagged: red for equipment, blue for thermostats, green for duct accessories (diffusers, grilles, dampers).

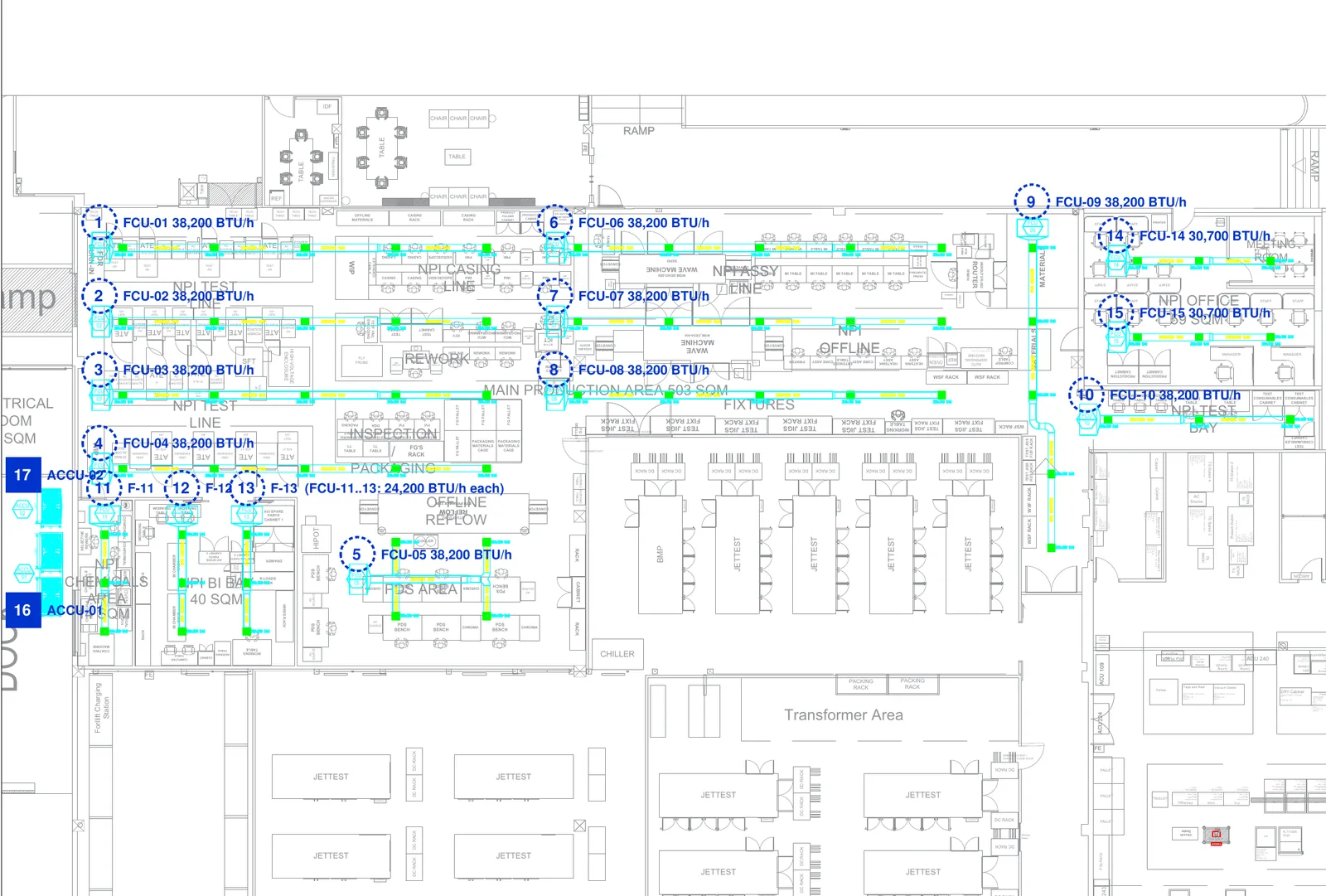

Factory production floor plan with numbered ducted VRF fan coil units labelled with BTU/h capacity, supply ducts, and two outdoor units ACCU-01 and ACCU-02 — Production floor, ducted VRF. Each ducted fan coil unit numbered with its capacity in BTU/h; outdoor units grouped outside the building.

Finished installs

What the marks on a plan turn into once the job is done.

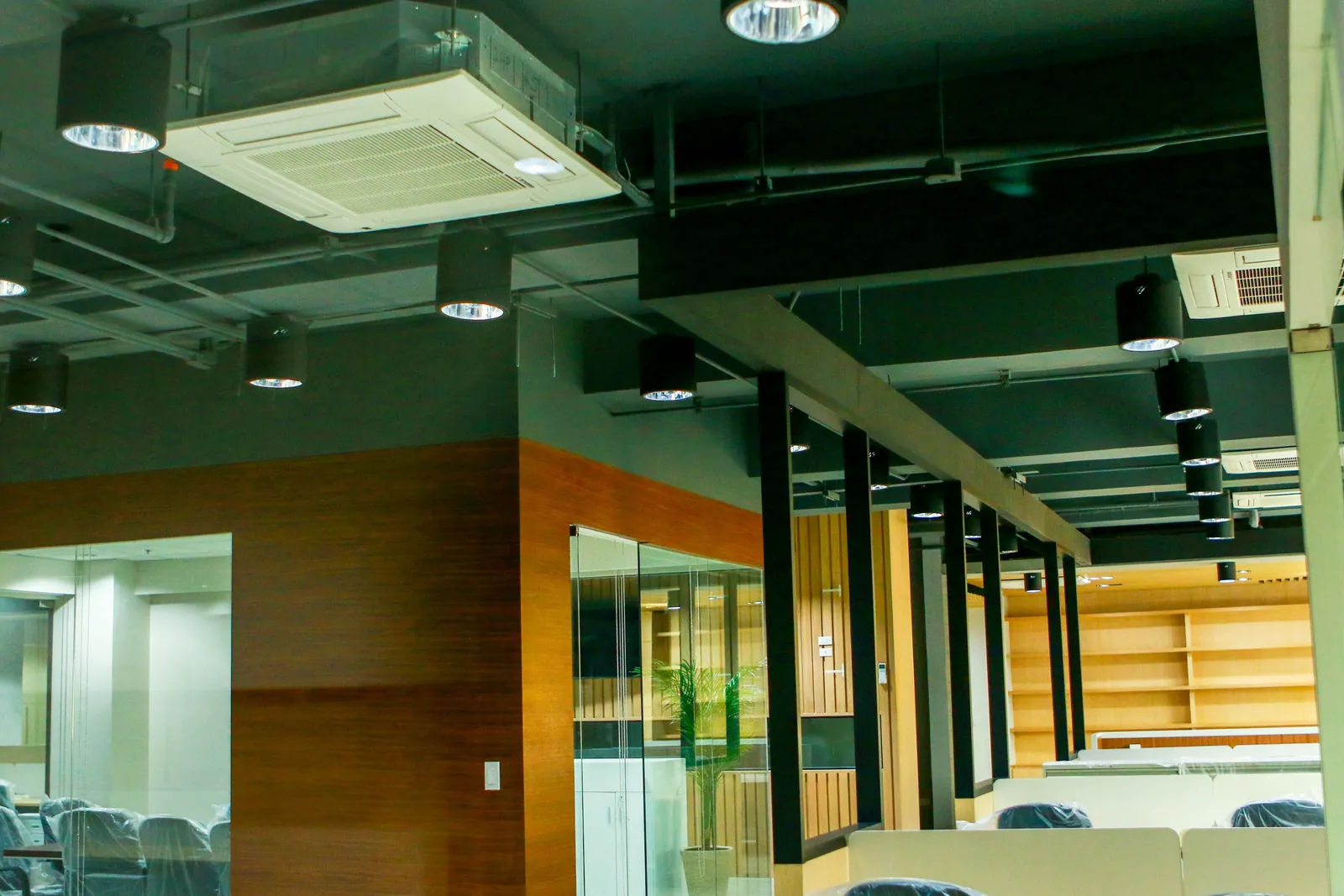

Ceiling cassette aircon units mounted in a dark exposed ceiling of an office, between pendant lights, with a glass-walled room below — Indoor units. Ceiling cassettes in an open, exposed ceiling, set between the pendant lights.

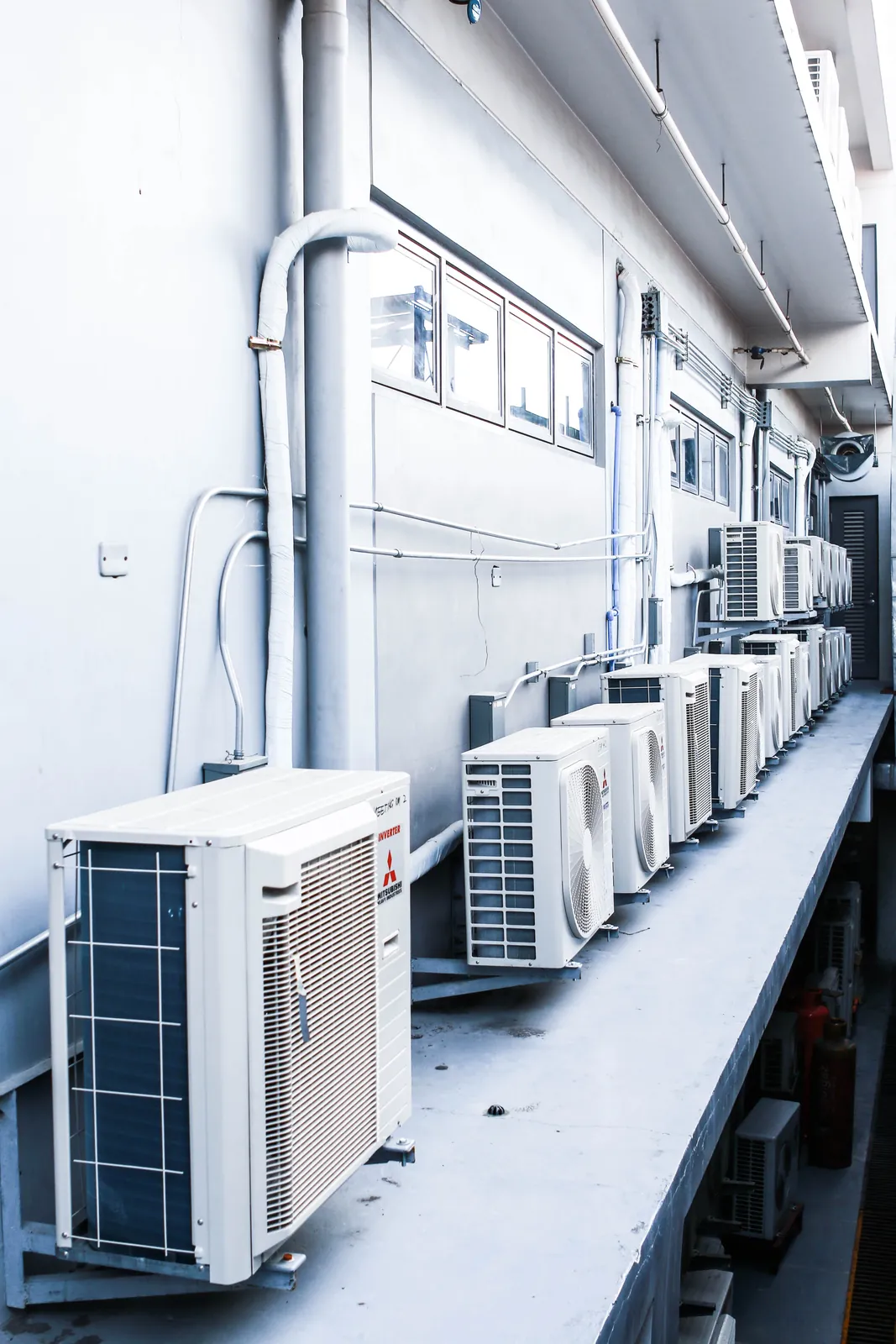

Row of inverter aircon outdoor units on a ledge along a building wall, with insulated refrigerant piping and drain lines — Outdoor units. A row of outdoor units on a ledge along the building wall, with insulated piping and drain lines run along the wall.

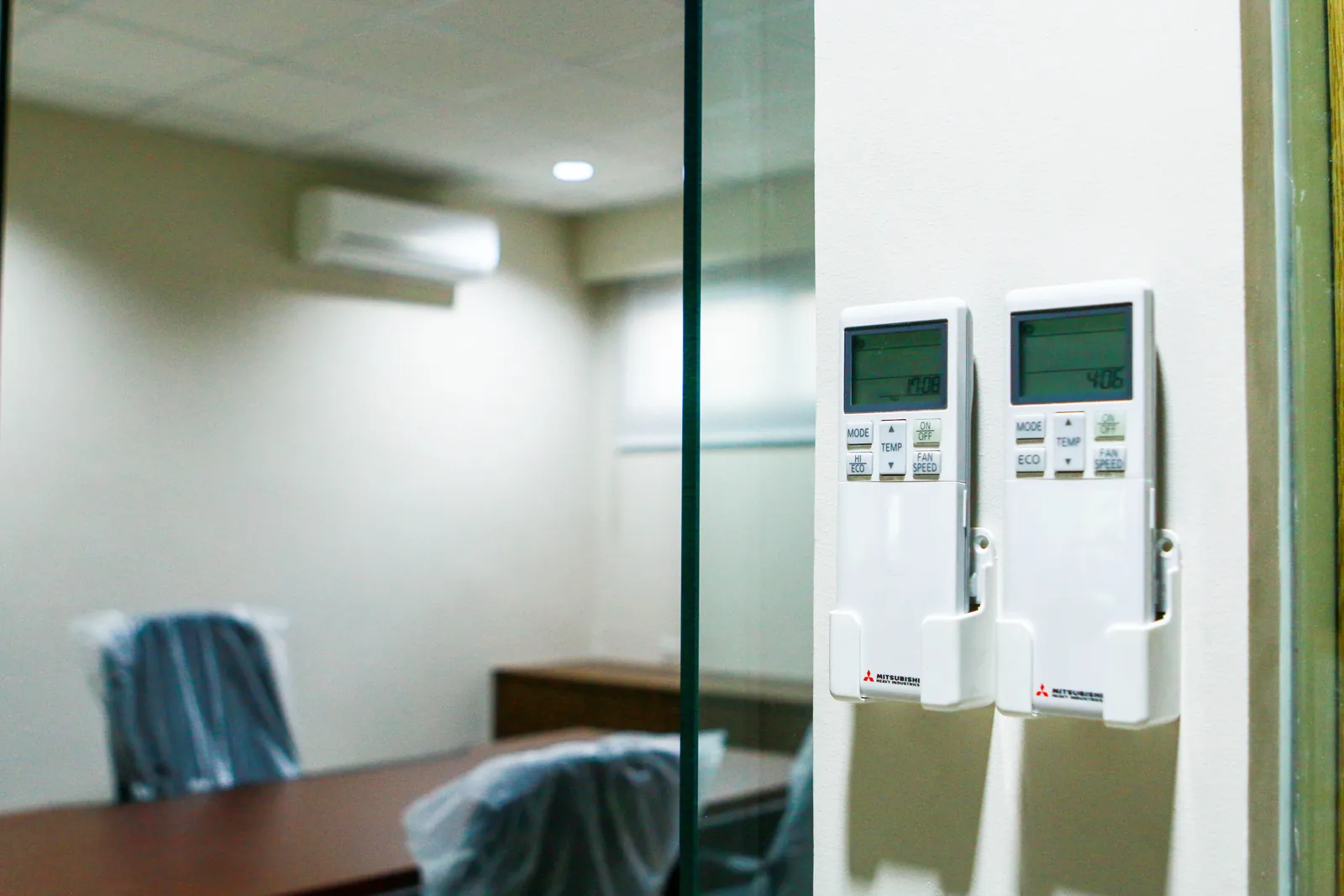

Two aircon remote controllers in a wall holder next to a glass meeting room with a wall-mounted split-type indoor unit — Controls. Two wall remote controllers in a holder beside a meeting room with a wall-mounted indoor unit.

How it works

Send your plan or photos. Floor plan (CAD, PDF or a photo of the printout) or photos of the rooms, plus sizes and how each room is used. WhatsApp, Viber or the quote form.
We check and mark it up. We work out the cooling load per room and, when you send a plan, mark the indoor units, outdoor units, piping and drain routes on it.
Site visit if needed. We measure the rooms, walls, drain route and breaker, and confirm unit placement on site.
Recommendation and quote. System type, capacity per room and an itemized quote.

An on-site visit may carry charges such as transport and mobilization. We confirm this with you before the visit.

What to send us

Floor plan or layout (CAD, PDF, photo or a sketch with measurements)
Photos of each room and of where the outdoor unit could go
Room dimensions or floor area
Ceiling height
How the room is used, and roughly how many people and how much equipment
Big windows or walls with afternoon sun
Photo of the breaker panel; single-phase or three-phase
Preferred unit type or brand, if you have one

Missing some of it? Send what you have.

What you get

A recommended system type and capacity per room or zone, brand options, and an itemized quote that lists piping, drain and electrical work. If you sent a floor plan, you also get it back marked with unit positions and piping and drain routes.

Get a Quote

Site Survey FAQ

Talk to Mr. Aircon

Monday to Saturday, 8AM to 6PM

Viber WhatsApp Messenger 0917-524-7266 Email
